Bow Stern thruster

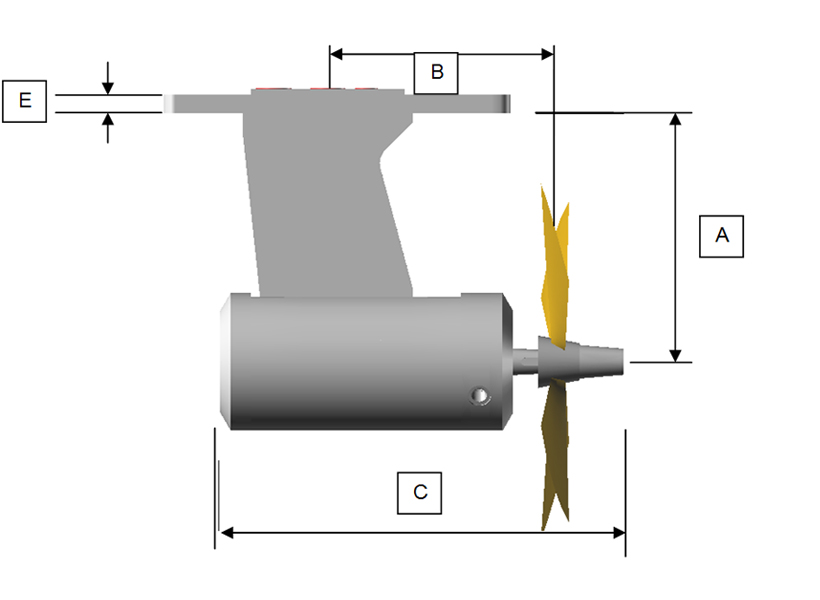

TYPE	A (mm)	B (mm)	C (mm)	E (mm)
BT 20 S	220	171,5		16
BT 40 S	256	182,5	411	16
BT 60 S	290	206	453,5	19
BT 80 S	324	273,5	524	25
BT 120 S	380	268,5	563	30
BT 160 S	380	268	654	30

THRUSTER REQUEST FORM

BT 20 S

Internal Tunnel Ø : 340 mm (13,38 inch)
Force: 2,81 kN
Input Power: 25 kW
Weight : 30,5 kg (67,4 lb)
Boat Length : Max 22 mt (72,2 feet)

DataSheet BT 20 S

BT 40 S

Internal Tunnel Ø : 390 mm (15,35 inch)
Force: 4,49 kN
Input Power: 45 kW
Weight : 45 kg (100 lb)
Boat Length : Max 28 mt (91,8 feet)

DataSheet BT 40 S

BT 60 S

Internal Tunnel Ø : 450 mm (17,7 inch)
Force: 5,88 kN
Input Power: 58 kW
Weight : 62 kg (136,4 lb)
Boat Length : Max 33 mt (108,2 feet)

DataSheet BT 60 S

BT 80 S

Internal Tunnel Ø : 510 mm (20,1 inch)
Force: 7.46 kN
Input Power: 116 lt. @ 294 bar
Weight : 117 kg (257,4 lb)
Boat Length : Max 39 mt (127,9 feet)

DataSheet BT 80 S

BT 120 S

Internal Tunnel Ø : 610 mm (24 inch)
Force: 9,28 kN
Input Power: 144 lt. @ 284 bar
Weight : 152 kg (334,4 lb)
Boat Length : Max 44 mt (144,3 feet)

DataSheet BT 120 S

BT 160 S

Internal Tunnel Ø : 610 mm (24 inch)
Force: 11,45 kN
Input Power: 117 kW
Weight : 180 kg (396 lb)
Boat Length : Max 50 mt (164 feet)

DataSheet BT 160 S
